Home > Solar > Jain Flat Plate Collector (FPC) Systems: Thermosyphon type

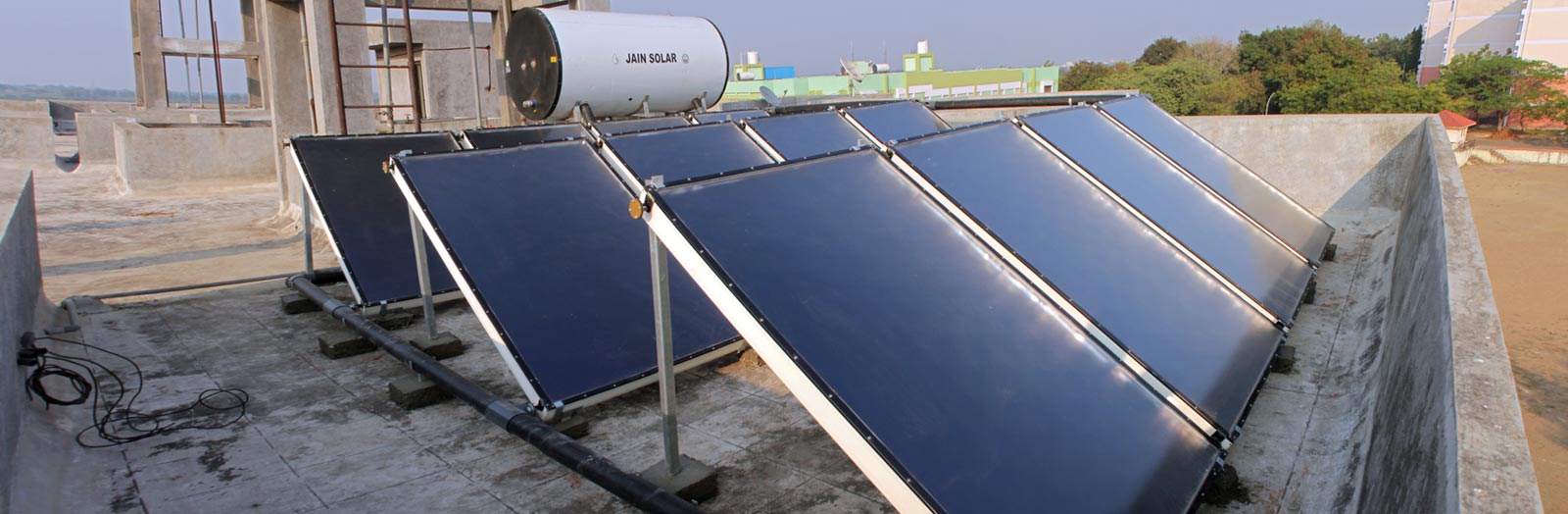

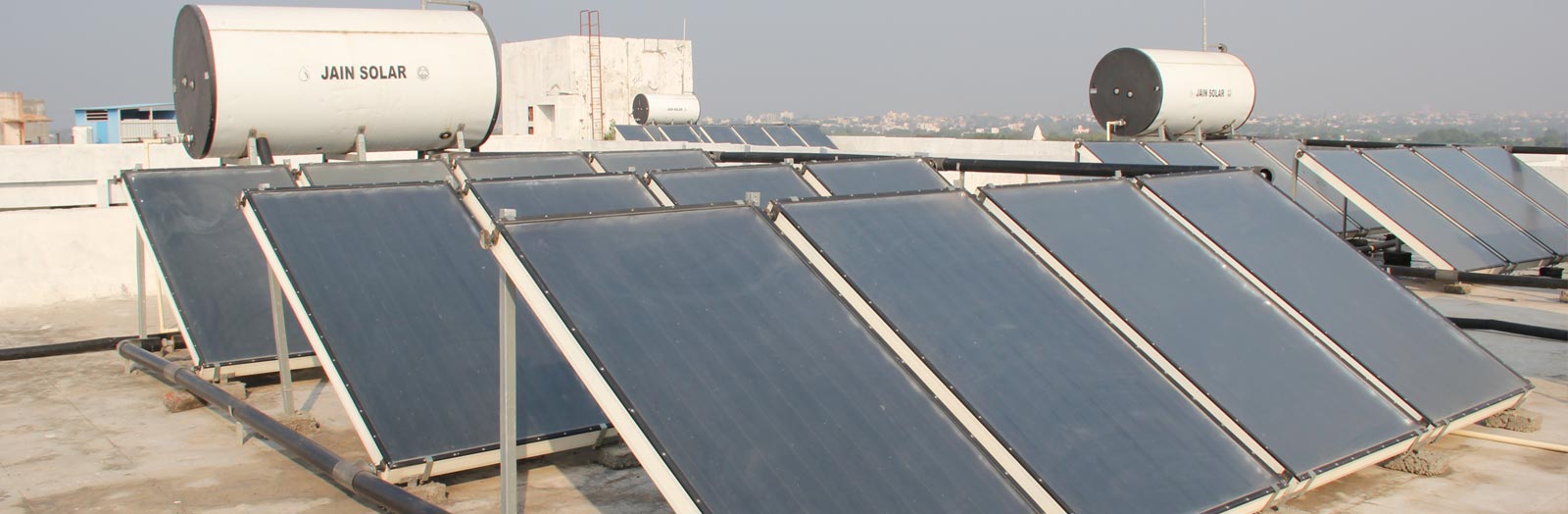

Flat Plate Collector (FPC)





PVD coated high performance full sheet absorber

This is the heart of the solar system. It consists of copper grid with selectively back chrome coated copper fins or aluminum full sheet absorber laser welded to the copper risers. Toughened and textured solar glass, mineral wool insulation, steel sheet for back support & extruded powder coated aluminum casing with weather proof joints. These are manufactured with latest BIS standards using state-of-the-art technology to achieve highest efficiency. The solar collector is ISI marked.

Insulated Hot Water Tank

Stainless Steel / Mild Steel hot water tank with outer cladding of G.I. precoated sheet, insulated with 50 mm thick PUF insulation & ABS end covers. This ensures least overnight temperature drop. Special pressure vessel design is available for pressurized systems.

Models

  • Jain SunGlow: MS tank (with coating), open loop and closed loop systems for 100 – 2,500 litres water tank

  • Jain SunGlow Pressurised: MS tank (with coating) for 100 – 2,500 litres water tank

  • Jain SunRise: SS (SS 304) tank with open and closed loop systems for 100 – 2,500 litres water tank

Open & Closed Loop Systems

  • Open Loop: for potable water

  • Closed Loop: for hard water
